| Brand Name | XH |
| Model Number | KH-18S10T |
| Original | China |
| Frequency | 1.8GHZ |
| Power Output | 8-10W(200MW 400MW 1W 4W 8-10W) |
| Channel | 15CH |
| Power Supply | 7-32V |
| Protocol | IRC-Tramp |
| Frequency Range | 1680MHz-1980MHz |
Product Overview

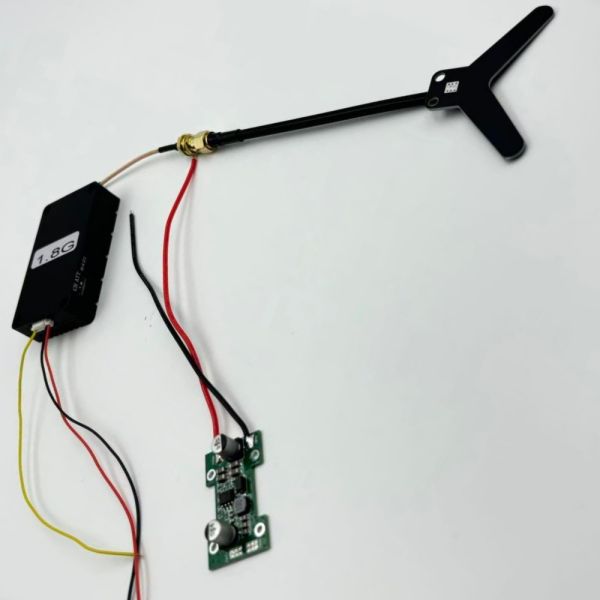

This adaptable Wireless Video Transmission Module excels across diverse use cases, operating in a 1680MHz-1980MHz range with a steady 1.8GHz core frequency. It features 5 power levels (200mW, 400mW, 1W, 4W, 10W) and 15 channels, delivering low-latency video/audio transmission—making it a go-to choice for UAV crop monitoring, commercial surveillance, and industrial site management, where flexibility and compatibility are key.
Test Part
Key Advantages
The 1680MHz-1980MHz range avoids congestion from consumer electronics, reducing interference in both urban (e.g., residential areas with dense Wi-Fi) and rural (e.g., farms with agricultural radios) settings. Its 1.8GHz core frequency ensures reliable signal transmission: it penetrates crop canopies for accurate UAV-based yield monitoring and maintains links in suburban areas with scattered buildings—no more distorted feeds from environmental barriers.
5 power modes let users tailor performance to their scenario. For short-range tasks like backyard UAV testing (200mW) or small-store surveillance (400mW), it saves energy; for medium-to-long-range needs (e.g., 1W for neighborhood security, 10W for cross-farm monitoring), it delivers extended coverage. This adaptability also means it works with different battery sizes, from small UAV packs to large industrial batteries.
15 channels enable seamless coexistence with other devices. For example, on a farm using multiple UAVs for crop scouting or a retail complex with multiple security cameras, each module can operate on a unique channel—preventing signal overlap and ensuring every feed remains clear. Quick channel switching also lets users respond to sudden interference (e.g., nearby construction radios) without downtime.
Designed for durability, it withstands temperature fluctuations (-20°C to 60°C) and minor moisture, making it suitable for outdoor use year-round. It supports HD video with low latency, critical for UAV pilots navigating tight spaces or surveillance teams tracking moving targets. Its compact size and wide voltage compatibility (7-32V) let it integrate into UAVs, ground sensors, or fixed cameras—no need for custom mounting or power solutions.
Compliant with global frequency regulations, it eliminates barriers for businesses operating across regions. For example, a company using the module in both the U.S. (FCC) and Europe (CE) doesn’t need separate units, simplifying inventory management and reducing costs. It also meets electromagnetic compatibility (EMC) standards, ensuring it doesn’t disrupt nearby electronics.
